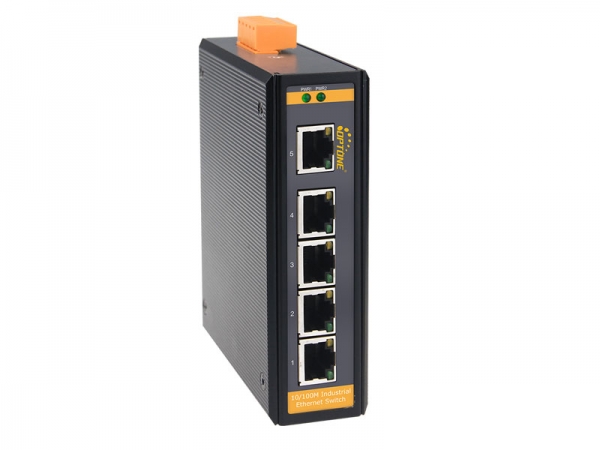

OPT-GY1005
OPT-GY1005 series support IEEE 802.3 and IEEE802.3u with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The OPT-GY1005 switches provide 12~48VDC power supply. These switches are specially designed for harsh industrial environments certified by UL508 and UL Class 1 Div 2 certifications.
Nội dung bài viết [hide]
OPT-GY1005 series support IEEE 802.3 and IEEE802.3u with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The OPT-GY1005 switches provide 12~48VDC power supply. These switches are specially designed for harsh industrial environments certified by UL508 and UL Class 1 Div 2 certifications.
| Interface | 5 x Ethernet port (RJ45) 10/100Base-Tx |
| Ethernet Port | Standard: IEEE802.3, IEEE802.3u, IEEE802.3x Available speed: force 10Mbps, force 100Mbps and auto-detective 10/100Mbps Full-Duplex and Half-Duplex auto-negotiation Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing |
| Switch Properties | MAC Table: 2K Packet Buffer: 1Mbit Switching Delay: <5μs |
| LED Indicators | Power, Speed, TX Link/Act |
| Power Requirement | Input: 12VDC~48VDC Consumption：3.5W Overload Protection: Support Reverse Connection Protection: Support Redundancy Protection: Support |
| Physical Characteristics | Housing: Metal enclosure Protection Class: IP40 Dimensions: 36 x 120 x 103mm Weight: 0.4kg Installation: DIN-Rail or Panel mounting |
| Environmental Limits | Operating Temperature: -40°C to 85°C Storage Temperature: -40°C to 85°C Operating Humidity: 10% to 95% RH (non-condensing) Storage Humidity: 5% to 95% RH (non-condensing) |
| Industrial Standard | EMI: FCC/CE/LVD/EMC EMS: IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Warranty | 5 years |
Quý khách hàng sau khi chọn được sản phẩm phù hợp có thể mua hàng bằng 2 hình thức sau:
1 Trực tiếp:
Quý khách để lại thông tin ở phần Nhận Báo Giá hoặc Liên Hệ, bao gồm SĐT - Sản phẩm muốn mua - Địa chỉ nhận hàng. Nhân viên của Hải Phong sẽ liên hệ tới bạn trong vòng 12h.
Trân trọng cảm ơn...!
