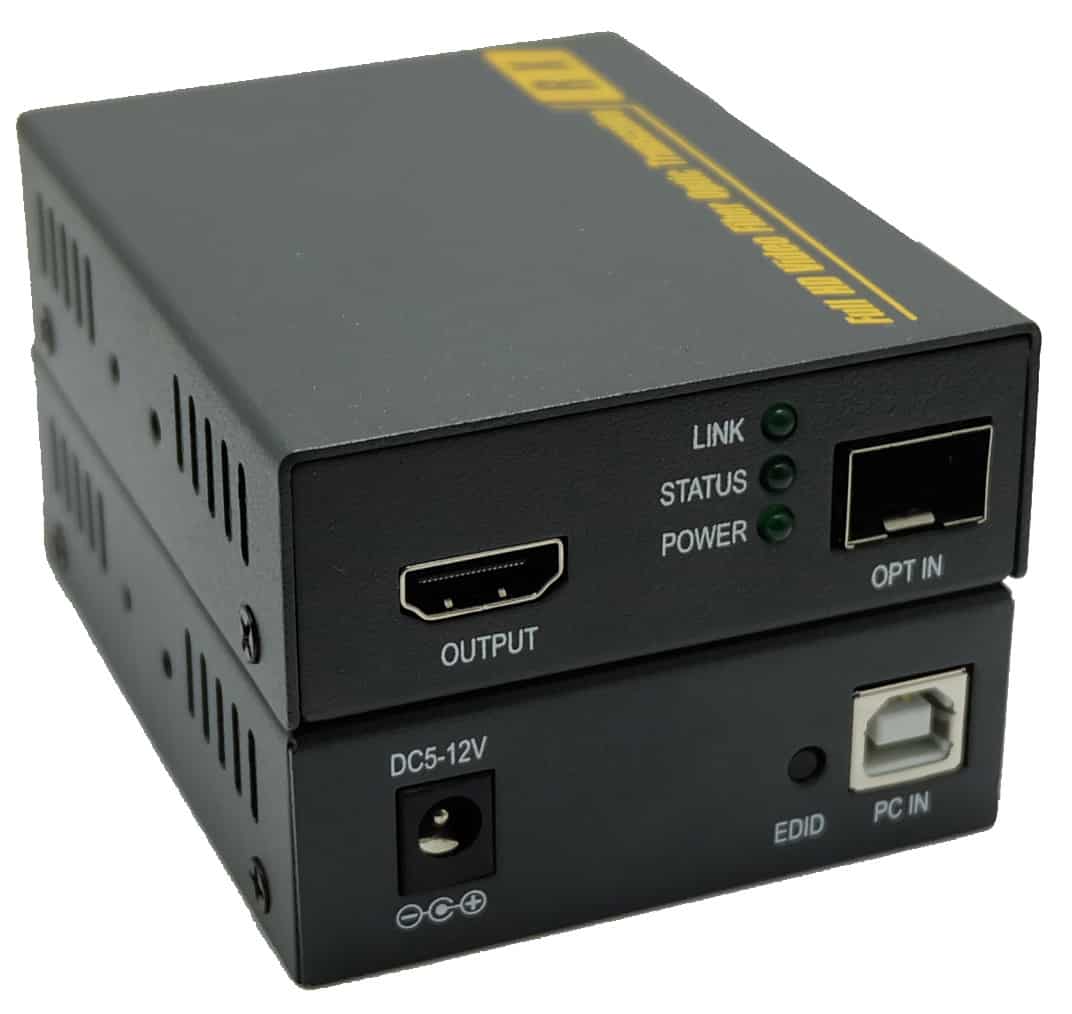

4K HDMI & USB KVM Over Fiber Optic Extender Kit

SKU:

AN-KVM-HDMI-EXT03

The HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K, And at the same time support USB keyboard mouse long distance transmission function, EDID pass-thru function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

​​​​​​​

Giới thiệu

The HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K, And at the same time support USB keyboard mouse long distance transmission function, EDID pass-thru function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Tính năng

  • Transmits HDMI video OM3 transmission 300 meter multimode dual core optical fiber;
  • Support keyboard and mouse signal transmission;
  • Support video resolution up to 3840*2160@30Hz, 1920*1200@60hz, 1920*1080P@60Hz, 3D signal;
  • Transmits HDMI signals up to 300 meters over OM3 fiber optic cable, also support EDID and HDCP.
  • Compliance with HDMI I 1.4 standard;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;
  • Simple to install, plug and play;

Thông số kỹ thuật

Parameter

Description

Video

Standards

HDMI 1.4

Maximum pixel clock

225MHz

Maximum data rate

6.75Gbps

Resolution range

Up to 3840*2160@30Hz

Connector

Female HDMI type A

Impedance

100Ω

K/M

Interface

PC: MINI-USB

Keyboard And Mouse: USB-A

Optical fiber

Interface

SFP model – LC connector

Fiber type

Multimode dual core

Wavelength

Multimode optical fiber 850 nm

Interface bandwidth

10Gbps

Transmission distance

Double OM3 fiber: 300M(Support HDCP

Other

Power supply

The power adapter: DC 5V/2A

Power dissipation

MAX 5W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

93*70*25mm

The warranty

1 year free warranty
