Giới thiệu

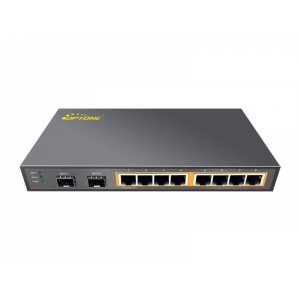

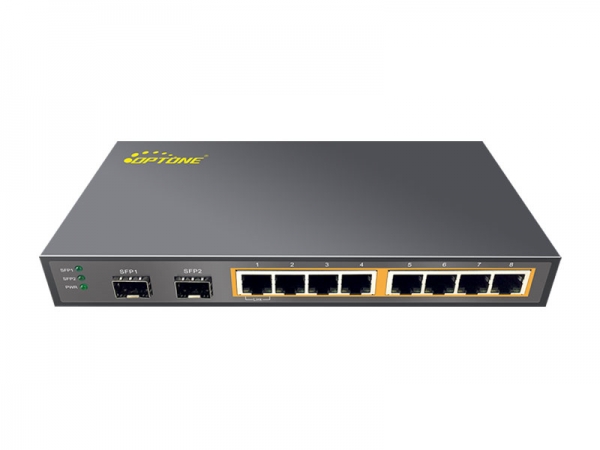

The switch provide 8-port 10/100/1000M RJ45 and 2-port 1000M SFP fiber ports, user may need to use different SFP modules, such as 1000Base-T, 1000Base-SX, 1000Base-LX and so on. Switch by the United States the latest Marvell IC, stable performance and excellent quality, with a higher cost performance. For small optical Ethernet and optical network with special needs.
Tính năng
- Complies with IEEE802.3, IEEE802.3u/ab/z standard
- Provides 8-port 10/100/1000M RJ45 and 2-port SFP fiber ports
- Supports auto duplex(HDX/FDX) auto MDI/MDIX function
- SFP port supports 1000BASE-SX/LX modules
- Supports 802.3x flow control
- Optional VLAN function
- Supports jumbo frame size 10K bytes
- Status LED for easy monitoring of device status
Thông số kỹ thuật
| Interface |
8 x Ethernet port (RJ45) 10/100/1000Base-Tx
2 x Optical port (SFP) 1000Base-Fx |
| Optical Port |
Available for 1310nm and 1550nm Single mode, 850nm Multi mode
Transfer Distance: up to 120km
Connectors: SFP
Fiber core: 9/125μm on single-mode fiber; 50/125μm and 62.5/125μm on multi-mode fiber |
| Ethernet Port |
Cable: Cat 5/5e/6 UTP cable
Available speed: force 10Mbps, force 100Mbps , force 1000Mbps and auto-detective 10/100/1000Mbps. Full-Duplex and Half-Duplex auto-negotiation
Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing |
| Standard |
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX/FX)
IEEE802.3ab (1000Base-T)
IEEE802.3z (1000Base-SX/LX/CX/T)
IEEE802.3x (Flow control) |
| Switch Properties |
MAC Table: 16K
Packet Buffer: 2Mbit
Switching Delay: <5μs |
| LED Indicators |
Power Status, FX Link/Act, TX Link/Act |
| Power Requirement |
12V DC, External AC to DC adapter |
| Physical Characteristics |
Housing: Metal enclosure
Dimensions: 214 x 105 x 32mm
Weight: 0.6kg |
| Environmental Limits |
Operating Temperature: -10°C to 70°C
Storage Temperature: -20°C to 70°C
Operating Humidity: 10% to 90% RH (non-condensing)
Storage Humidity: 5% to 90% RH (non-condensing) |
| Warranty |
3 years |
Thông tin sản phẩm
| Model No. |
Description |
| OPT-2210 |
2*GE SFP Fiber ports to 8*10/100/1000Base-Tx, VLAN Optional |
| Optional SFP |
| SFP-SX-MM-0205 |
SFP，1.25G，850nm，0.5km，LC |
| SFP-LX-SM-0220 |
SFP，1.25G，1310nm，20km，LC |
| SFP-LX-SM-0240 |
SFP，1.25G，1310nm，40km，LC |
| SFP-ZX-SM-0280 |
SFP，1.25G，1550nm，80km，LC |
