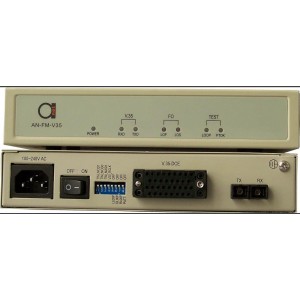

AN-FM-V35/AC-MM
AN-FM-V35 is a high-performance V.35 fiber optic modem developed by using a dedicated integrated circuit. It is to modulate N*64K V.35 data signal directly over single- or multi-mode optic fiber for a transmission via optic cable line. At another end of the optic cable, optical signal is demodulated into a V.35 data signal.
Nội dung bài viết [hide]
AN-FM-V35 is a high-performance V.35 fiber optic modem developed by using a dedicated integrated circuit. It is to modulate N*64K V.35 data signal directly over single- or multi-mode optic fiber for a transmission via optic cable line. At another end of the optic cable, optical signal is demodulated into a V.35 data signal. V.35 interface may be directly connected with the V.35 interfaces of image and data terminals or the WAN ports of MUX, exchanger and router for a dedicated network setup or a LAN connection.
The AN-FM-V35 is a fiber media transport for 1 x V.35 transmission. All modems are available with either multi-mode or single-mode optical tranceivers and with connectors for SC, ST, or FC. In single mode they are available in up to 120 km versions reach, which will provide the ability to transmit and receive data using only a single optical fiber pair.
When the AN-FM-V35 is linked to the AN-CH03 with AN-FM-V35 card, it allows network engineers to get greater functionality through advanced SNMP features, the network administrator can manage any converter module from anywhere on the network, detect any link loss and maintain each loop.
Optic interface:
Line mode type： CMI
Line mode rate： 2.048Mbps
Operating wavelength：850nm,1310nm or 1550nm
Optic fiber connector：SC/PC
Applicable optic fiber：multi-mode, single-mode
Transmission distance：
Single-mode：up to 120km Multi-mode: up to 2km
V.35 interface:
Data rate：N×64Kbps（N=1~32）
Available with CTS/RTS (Hardware) flow control function
Type of connector：M34 connector
Operating mode: DCE
Indicator lamp: To indicate the operating status of power supply, data receiving/sending, loopback and random code test, code missing alarm, out-of-frame alarm etc.
Structure:
Independent：140mm (depth) x 210mm (width) x 42mm (height)
Rack-mountable： 19in 4.5U standard casing
Power supply：
Independent：85V～264V AC input, 5V/2A output
-36V～-72V DC input , 5V/2A output
Rack-mountable：150V～260V AC input，5V/16A 、12V/1A output
-38V～-58V DC input，5V/16A 、12V/1A output
Power consumption： 3W
Operating temperature： 0℃～50℃
Storage temperature： -20℃～80℃
Humidity： 5%～90% (free of condensate)
| AN-FM-V35/AC-MM |
V.35 signal over multi-mode fiber 2 km SC/ST, 220V/110V |
| AN-FM-V35/AC-S40 |
V.35 signal over single-mode fiber 40km SC/ST, 220V/110V |
| AN-FM-V35/AC-S60 |
V.35 signal over single-mode fiber 60km SC/ST, 220V/110V |
| AN-FM-V35/AC-S80 |
V.35 signal over single-mode fiber 80km SC/ST, 220V/110V |
| AN-FM-V35/AC-S100 |
V.35 signal over single-mode fiber 100km SC/ST, 220V/110V |
| AN-FM-V35/AC-S120 |
V.35 signal over single-mode fiber 120km SC/ST, 220V/110V |
| AN-FM-V35/DC-MM |
V.35 signal over multi-mode fiber 2 km SC/ST, DC-48V |
| AN-FM-V35/DC-S40 |
V.35 signal over single-mode fiber 40km SC/ST, DC-48V |
| AN-FM-V35/DC-S60 |
V.35 signal over single-mode fiber 60km SC/ST, DC-48V |
| AN-FM-V35/DC-S80 |
V.35 signal over single-mode fiber 80km SC/ST, DC-48V |
| AN-FM-V35/DC-S100 |
V.35 signal over single-mode fiber 100km SC/ST, DC-48V |
| AN-FM-V35/DC-S120 |
V.35 signal over single-mode fiber 120km SC/ST, DC-48V |
| AN-FM-V35/AC-WDM20 |
V.35 signal over single-mode fiber single strand (WDM) 20km SC/ST, DC-48V or AC 96-260 |
| AN-FM-V35/AC-WDM40 |
V.35 signal over single-mode fiber single strand (WDM) 40km SC/ST, DC-48V or AC 96-260 |
| AN-FM-V35/AC-WDM60 |
V.35 signal over single-mode fiber single strand (WDM) 60km SC/ST, DC-48V or AC 96-260 |
