EN50155 8+4G-port Layer 3 Managed Ethernet Switches

SKU:

TNS5800 Series

TNS5800 series are 12-port 100M/Gigabit layer 3 managed industrial Ethernet switches designed for rail transit. This series of products conform to EN50155 and EN50121 industrial standards. Ethernet interface adopts reliable M12, which can be used in scenes with strenuous vibration and shock. This series include two types of products and provide Gigabit M12 and 100M M12 interfaces. It adopts 1U rack-mounted or wall mounting to meet the requirements of different application scenes.

​​​​​​​

Giới thiệu

TNS5800 series are 12-port 100M/Gigabit layer 3 managed industrial Ethernet switches designed for rail transit. This series of products conform to EN50155 and EN50121 industrial standards. Ethernet interface adopts reliable M12, which can be used in scenes with strenuous vibration and shock. This series include two types of products and provide Gigabit M12 and 100M M12 interfaces. It adopts 1U rack-mounted or wall mounting to meet the requirements of different application scenes.

Network management system supports various network protocols and industrial standards, such as Static Route, RIP, OSFP, VRRP, BGP, STP/RSTP/MSTP, 802.1Q VLAN, QoS, DHCP Server, DHCP Client, IGMP Static Multicast, LLDP, Port Trunking, Port Mirroring and so on. It also possesses complete management functions, including Port Configuration, Port Statistics, Port IP Binding, Access Control, 802.1X Authentication, Network Diagnosis, Rapid Configuration, Online Upgrading, and supports CLI, WEB, Telnet, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.

When the port link failure occurs, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It’s specially designed for rail transit industry and can be widely used in vehicle-mounted PIS, CCTV, Video Monitoring, Train Control and other systems.

Tính năng

  • SNMPv1/v2c/v3 is used for network management of various levels
  • RMON can be used for efficient and flexible network monitoring
  • Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
  • QoS supports real-time traffic classification and priority setting.
  • LLDP can achieve automatic topology discovery, which is convenient for visual management
  • DHCP server and client can be used for distributing IP address
  • File management is convenient for the device rapid configuration and online upgrading
  • Log management has recorded booting, operation and connection information
  • Port statistics can be used for the port real-time traffic statistics
  • ARP and Static ND can be used for MAC address resolution
  • User password can conduct user hierarchical management, improving the device management security
  • Radius server authentication, Anti-attack control, ACL and 802.1X Authentication can enhance the network flexibility and security
  • Relay alarm is convenient for troubleshooting of construction site
  • Storm suppression can restrain broadcast, unknown multicast and unknown unicast
  • SSHD configuration can achieve data transmission encryption, preventing DNS and IP spoofing
  • TELNET and HTTPS configuration can ensure the data access security
  • VLAN can simplify the network planning
  • Port Trunking and LACP can enhance network bandwidth and reliability of network connection to achieve optimum bandwidth utilization
  • Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
  • Port isolation can be conducted in the same VLAN, saving VLAN resources
  • IGMP snooping, GMRP and static multicast can be used for filtering multicast traffic, which can save the network bandwidth
  • SW-Ring and STP/RSTP/MSTP can achieve network redundancy, preventing network storm
  • Network diagnosis and troubleshooting can be conducted via Ping, Traceroute and Port Loopback
  • VRRP, RIP, OSPF and BGP can achieve dynamic route configuration

Thông số kỹ thuật

Standard

&

Protocol



IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1Q for VLAN

IEEE 802.1p for CoS

IEEE 802.1X for 802.1X Authentication

IEEE 802.1AB for LLDP

IEEE 802.3ad for LACP



Management



SNMP v1/v2c/v3 Centralized Management of Equipment, RMON,

Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Log Management, Port Statistics, Static ARP, Static ND



Security



Classification of User Permissions, Anti-attack Control, ACL, 802.1X Authentication, Radius Server Authentication, Port Alarm, E-mail Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, HTTPS Configuration



Switch Function



802.1Q Vlan, Static/Dynamic Port Aggregation, Bandwidth Management, Flow Control, Port Isolation





Unicast / Multicast



Static Multicast, GMRP, IGMP-Snooping



Redundancy

Protocol





SW-Ring, STP/RSTP/MSTP



Troubleshooting



Ping, Traceroute, Port Loopback





Time Management



SNTP



Route



VRRP, RIP, OSPF, BGP
Interface



100M M12: 10/100Base-T(X), M12 (Female), 4-Pin D-Coded, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

Gigabit M12: 10/100/1000Base-T(X), M12 (Female), 8-Pin A-Coded, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning

Console port: CLI command line management port (RS-232), RJ45 (rack-mounted) or M12 (wall mounting)

Alarm port: 3-pin 5.08mm pitch terminal blocks (rack-mounted) or M12 (wall mounting), support 1 relay alarm output, current carrying capacity 5A@30VDC or 10A@125VAC



LED Indicator



Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator



Switch

Property



Transmission mode: store and forward

MAC address: 16K

Packet buffer size: 12Mbit

Backplane bandwidth: 128G

Switch time delay: < 10μs



Power

Requirement



Rack-mounted: 110VAC/DC (100~240VAC/DC), 3-pin 5.08mm pitch terminal blocks;

              support 8A overcurrent protection

Wall mounting: 110VDC (70~160VDC), M12 (Male), 4-pin A-Coded;



Environmental

Limit



Operating temperature range: -40~75℃

Storage temperature range: -40~75℃

Relative humidity: 5%~95%(no condensation)



Physical Characteristic

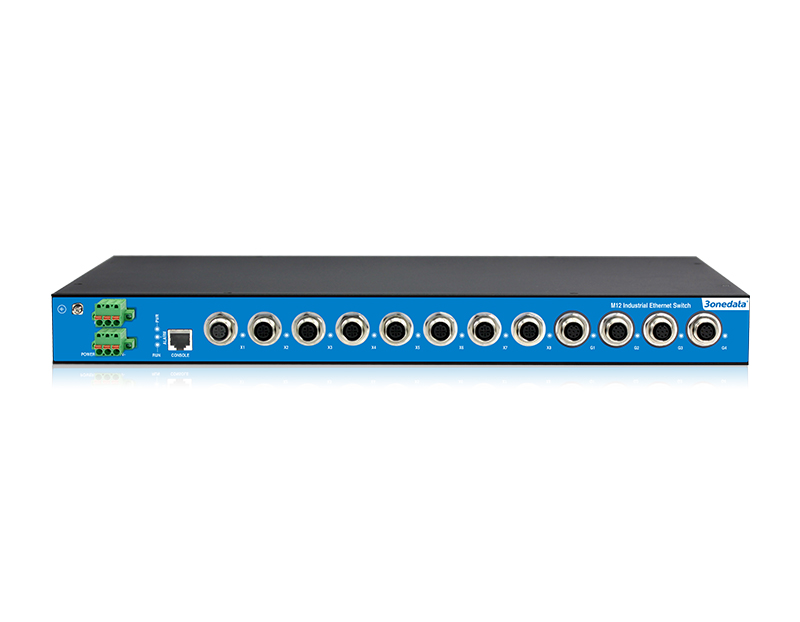

TNS5800-4GT-8T

Housing: IP40 protection, metal

Installation: 1U rack-mounted

Dimension (W x H x D): 441.6mm×44.45mm×290mm

Weight: 4.42kg

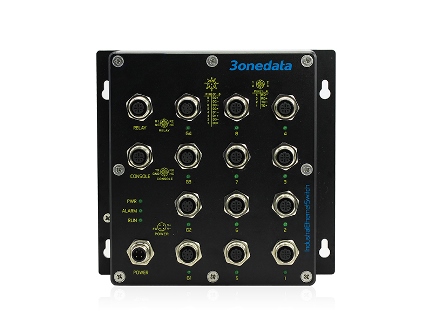

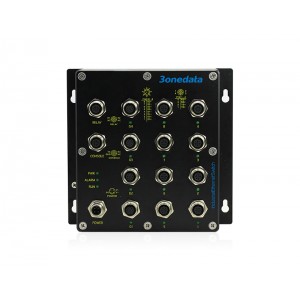

TNS5800D-4GT-8T

Housing: IP30 protection, metal

Installation: wall mounting

Dimension (W x H x D): 180mm×170mm×60.2mm

Weight: 2.06kg



Industrial

Standard



IEC 61000-4-2 (ESD) ,Level 3

Air discharge: ±8kV

Contact discharge: ±6kV



IEC 61000-4-4 (EFT), Level 3

Power supply: ±2kV

Ethernet interface: ±1kV

Relay: ±2kV



IEC 61000-4-5 (Surge),Level 3

Power supply: common mode ±2kV, differential mode ±1kV

Ethernet interface: ±2kV

Relay: common mode ±2kV, differential mode ±1kV



IEC 61000-4-6 (CS),Level 3

Test level: 10V

Frequency range: 150kHz-80MHz



IEC 61000-4-8 (PFMF),Level 4

Power frequency: 50Hz

Continuous magnetic field strength: 30A/m

Short-term magnetic field strength: 300A/m



Shock: IEC 61373

Free fall: IEC 60068-2-32

Vibration: IEC 61373

Fire prevention: EN45545



Certification



CE, FCC, RoHS, EN50155, EN50121-3-2



Warranty



5 years



Thông tin sản phẩm

Available Models Gigabit M12 Port 100M M12 Port Power Supply Range Installation Method
TNS5800-4GT-8T  4 8 100~240VAC/DC   1U rack-mounted
TNS5800D-4GT-8T 4 8 70~160VDC wall mounting
