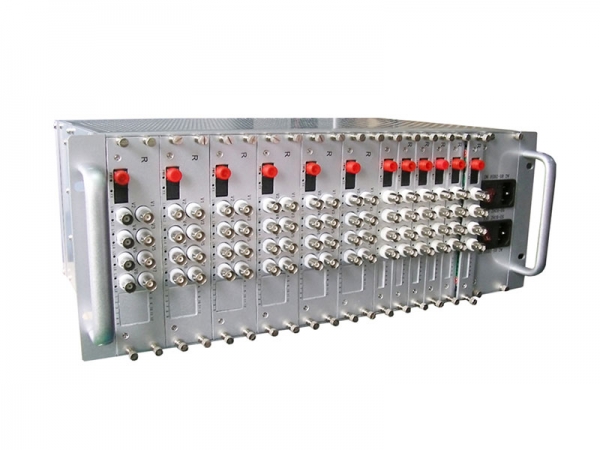

OPT-S32V-T/RF
OPTseries video optical transceiver adopts the advanced digital video and opticalfiber transmission technology, and implement the real-time transmission &synchronization, no-distortion and high quality 32/64-channel video signal on thesingle fiber.
Nội dung bài viết [hide]
OPTseries video optical transceiver adopts the advanced digital video and opticalfiber transmission technology, and implement the real-time transmission &synchronization, no-distortion and high quality 32/64-channel video signal on thesingle fiber. 32/64-channel video optical transceiver adopts the full digital videonon-compression transmission technology and high quality video effect, whichcan meet the user’s requirements; the play-and-plug design makes theinstallation more convenient and easier, and it is unnecessary to implement thespot adjustment; its optical module and core circuit adopts the importedcomponents that have high stability, and all optical & electricalinterfaces conform to the international standards, which is applied to thedifferent working environment. This optical transceiver with video statusindication can monitor the normal operation of system.
| OpticalFeature | Transfer Distance: up to 120km Connectors: ST/PC, FC/PC optional Wavelength: 1310nm/1550nm |
| VideoFeature | Video Interface: BNC Video input/output impedance: 75Ω (unbalanced) Video input/output Voltage: 1VP - P (peak value),Max 1.2Vpp Video Bandwidth: 10MHz Video sampling: 15MHz high speed sampling Video digit bit width: 8/10 bit Differential gain: （ 10%-90%APL） DG <1%( Typical value) Differential phase: （ 10%-90%APL） DP <0.8<>°( Typical value) Video SNR: S/N ≥ 70dB （Maximum optical link path loss） |
| AudioFeatures | Audio interface: Forward Direction, Reverse Direction orBi-directional Audio Interface terminal: Standard industrial connectingterminals Audio input/output electric level typical: 0dBm Audio input/output impedance: 600Ω (balanced/unbalanced) Audio input/output amplitude: 2VP-P(peak value) Audio bandwidth: 20Hz～20kHz Sample rate: 58.6K Nonlinear distortion coefficient: ≤1% Audio SNR: S/N≥85db |
| DataFeatures | Interface：Standard industrialconnecting terminals Controlling Equipment： PTZ decoder,Keyboard ,data interface of Matrix, High speed dome camera, industrial equipment Interface Signals: RS-485(2 lines), RS232, RS422 and so on |
| AlarmFeatures | Interface：standard industrialconnecting terminals ( Alarm, Switch, Remote control ) Alarm/switch input signals: any active or passivealarm/switch input, supporting passive switch Alarm/switch output signals: any active or passivealarm/switch output, supporting relay contact output Current: Low current, High-current and high-voltage can useabove 1A/12V |
| EthernetFeatures | Interface Speed Rate: 10/100Mbit/s Auto-adaptation, thedefault is 100MBPS working condition Interface Type: RJ-45 Supporting Agreements: IEEE802.3U 100Base-TX, 10/100M Communication Working format: Full-duplex or half-duplex |
| TelephoneFeatures | Physical Interface: RJ-11 Connector Jack Voice Bandwidth: 8KHZ Operating Mode: Point-to-point hotline, programcontrolled switch/extension mode |
| GeneralParameter | Operating Temperature: -40 ℃～+85 ℃ Storage Temperature: -45 ℃～+95 ℃ Relative humidity: 0～95%(Non-condensing) Power Voltage: AC85-260v/50Hz MTBF：≥105 hours Housing: Metal enclosure |
| Model No. | Description |
|---|---|
| OPT-S32V-T/RF | 32 Channel Video, FC |
| OPT-S32V1D-T/RF | 32 Channel Video + 1 Channel Data, FC |
| OPT-S32V1D1A-T/RF | 32 Channel Video + 1 Channel Data + 1 Channel Audio, FC |
| OPT-S64V-T/RF | 64 Channel Video, FC |
| OPT-S64V1D-T/RF | 64 Channel Video + 1 Channel Data, FC |
| OPT-S64V1D1A-T/RF | 64 Channel Video + 1 Channel Data + 1 Channel Audio, FC |
