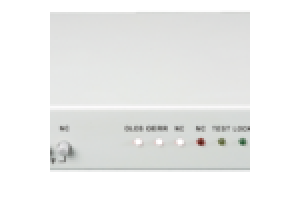

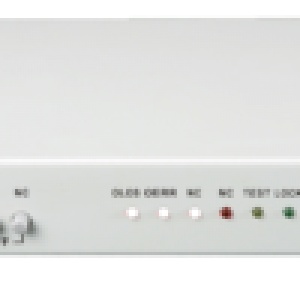

AN-STM1/MM
AN-STM1/SM is an STM-1 converter for STM-1 electrical and optical interface conversion. It is designed for the SDH equipment coaxial interface and optical interface interconnect, as well as the ATM 155.520 Mbps interface and SDH device interconnection.
Nội dung bài viết [hide]
AN-STM1/SM is an STM-1 converter for STM-1 electrical and optical interface conversion. It is designed for the SDH equipment coaxial interface and optical interface interconnect, as well as the ATM 155.520 Mbps interface and SDH device interconnection.
|
Items |
Description |
||
| Electrical Interface | Standard | ITU-T G.703 Compliant | |
| Data Rate | 155.52 Mbps | ||
| Line Code | CMI | ||
| Physical Connector | BNC Coaxial | ||
| Optical Interface | Standard | ITU-T G.957 STM-1 | |
| Bit rate | 155.520 Mbps | ||
| Coding | NRZ | ||
| Connector | SC | ||
| Light source | Laser Diode | ||
| Wave length | 1310nm (Typical),or 1550 nm (Optional) or Single Fiber Bi-Directional (Optional) | ||
| Transmit power | -12 dBm (1310nm) / -5 dBm (1550nm) | ||
| Receive sensitive | -36 dBm (1310nm) / -38 dBm (1550nm) | ||
| Power supply | AC 220V | Range 165V to 265 V | |
| DC -48V | Range -36V to -72V | ||
| Power Consumption | <3 W | ||
| Environment | Working Temperature | 0 – 50 C | |
| Relative Humidity | >90% (Non condensing) | ||
| Dimension | WxHxD(mm): 205 x 136 x 42 | ||
| AN-STM1/MM |
STM-1 fiber multiplexer (Optical/Electrical converter). Multimode 2 km, 48 V/110-220 VAC for option, SC/FC/ST connector types available |
| AN-STM1/SM-20 |
STM-1 fiber multiplexer (Optical/Electrical converter). Single mode dual fiber 20 km, 48 V/110-220 VAC for option, SC/FC/ST connector types available |
| AN-STM1/SM-40 |
STM1 fiber multiplexer (Optical/Electrical converter). Single mode dual fiber 40 km, 48 V/110-220 VAC for option, SC/FC/ST connector types available |
| AN-STM1/SM-50 |
STM1 fiber multiplexer (Optical/Electrical converter). Single mode dual fiber 50 km, 48 V/110-220 VAC for option, SC/FC/ST connector types available |
| AN-STM1/SM-60 |
STM1 fiber multiplexer (Optical/Electrical converter). Single mode dual fiber 60 km, 48 V/110-220 VAC for option, SC/FC/ST connector types available |
| AN-STM1/SM-80 |
STM1 fiber multiplexer (Optical/Electrical converter). Single mode dual fiber 80 km, 48 V/110-220 VAC for option, SC/FC/ST connector types available |
| AN-STM1/SM-100 |
STM1 fiber multiplexer (Optical/Electrical converter). Single mode dual fiber 100 km , 48 V/110-220 VAC for option, SC/FC/ST connector types available |
| AN-STM1/SM-120 |
STM1 fiber multiplexer (Optical/Electrical converter). Single mode dual fiber 120 km , 48 V/110-220 VAC for option, SC/FC/ST connector types available |
| AN-STM1/WDM-20 |
STM-1 fiber multiplexer (Optical/Electrical converter). Single mode WDM (BiDi) 20 km , 48 V/110-220 VAC for option, SC/FC/ST connector types available |
| AN-STM1/WDM-40 |
STM-1 fiber multiplexer (Optical/Electrical converter). Single mode WDM (BiDi) 40km , 48 V/110-220 VAC for option, SC/FC/ST connector types available |
