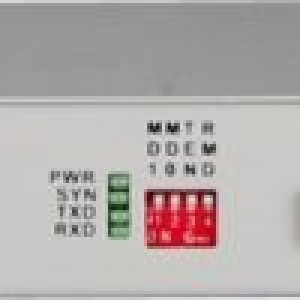

CAN BUS Fiber Modem – Can Bus Over Fiber Extender / Multiplexer

SKU:

AN-FM-CANBUS

The device can achieve optical fiber CAN bus signals converted to optical signals on optical fiber transmission, extended the CAN bus communication distance, and because the use of optical fiber communication, solve the electromagnetic interference, ground loop interference and lightning damage, greatly improving the reliability of data communications, security and confidentiality, can be widely used in various industrial control, process control, and traffic control and other occasions, especially for banks, electricity and electromagnetic interference environment departments have special requirements and systems.


Liên hệ với chúng tôi để được tư vấn chi tiết:
Mr. Cường0986546768               Mr. Tuấn Anh: 0902175848
Mr. Ngọc: 0868886229                   Mr. Dũng: 0888497878
Mr. Đạt: 0986927575                      Mr. Việt Anh: 0914240896​​​​​​​
​​​​​​​

​​​​​​​

Giới thiệu

The device can achieve optical fiber CAN bus signals converted to optical signals on optical fiber transmission, extended the CAN bus communication distance, and because the use of optical fiber communication, solve the electromagnetic interference, ground loop interference and lightning damage, greatly improving the reliability of data communications, security and confidentiality, can be widely used in various industrial control, process control, and traffic control and other occasions, especially for banks, electricity and electromagnetic interference environment departments have special requirements and systems.

Tính năng

  • Based on proprietary integrated circuit;
  • Provide a CAN bus interface, an optical port
  • CAN transparent data transmission, without any set
  • CAN interface Maximum number of nodes 128
  • CAN interface rate 0-500Kbps
  • CAN interface speed in line with international CAN1.0, CAN2.0 standard multiple power mode options: AC220V, DC-48V / DC24V etc.
  • DC-48V / DC24V power supply with automatic polarity detection function, when installed without distinction between positive and negative
  • CAN interface with lightning protection, lightning reached GB / T17626.5 (IEC61000-4-5)Short circuit current wave 8 / 20μs, open standard peak output voltage 6KV

Thông số kỹ thuật

Functional Description

One channel CAN fiber modem

Port Description

An optical port;One CAN BUS Interface

Power

Power supply: AC180V ~ 260V;DC –48V;DC +24V

Power consumption: ≤10W

Dimension

Product Size: 103X93X28mm (WXDXH)

Weight

1.2KG
