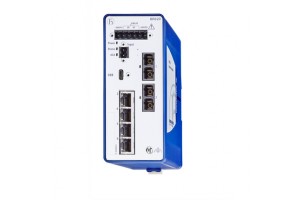

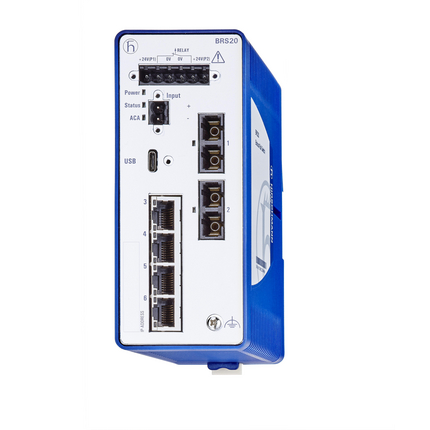

BRS20-4TX/2FX-EEC-HL Hirschmann Switch công nghiệp 4 cổng 100M Ethernet, 4 cổng 100M quang

SKU:

BRS20-4TX/2FX-EEC-HL

BRS20-4TX/2FX-EEC-HL Hirschmann Switch công nghiệp hỗ trợ 4 cổng 100M Ethernet; 2 cổng 100M quang ; 1. Uplink: 1 cổng 100M quang, MM-SC ; 2. Uplink: 1 cổng 100M quang, MM-SC.

Giới thiệu

Switch Hirschmann BOBCAT là thiết bị đầu tiên cho phép giao tiếp thời gian thực bằng TSN. Để hỗ trợ hiệu quả các yêu cầu giao tiếp thời gian thực ngày càng tăng trong các môi trường công nghiệp, một mạng lưới Ethernet mạnh là cần thiết. Thiết bị chuyển mạch có quản lý nhỏ gọn này cho phép mở rộng khả năng băng thông bằng cách điều chỉnh SFP của bạn từ 1 đến 2,5 Gigabit - không yêu cầu thay đổi thiết bị.

Thông số kỹ thuật

Product description
Type BRS20-4TX/2FX-EEC-HL (Product code: BRS20-0600M2M2-TTCX99HHSESXX.X.XX)
Description Managed Industrial Switch for DIN Rail, fanless design Fast Ethernet Type
Part Number 942170036
Port type and quantity 6 Ports in total: 4x 10/100BASE TX / RJ45; 2x 100Mbit/s fiber ; 1. Uplink: 1 x 100BASE-FX, MM-SC ; 2. Uplink: 1 x 100BASE-FX, MM-SC
More Interfaces
Power supply/signaling contact 1 x plug-in terminal block, 6-pin
Digital Input 1 x plug-in terminal block, 2-pin
Local Management and Device Replacement USB-C
Network size - length of cable
Twisted pair (TP) 0 - 100 m
Multimode fiber (MM) 50/125 µm 0-5000 m, 8 dB Link Budget at 1300 nm, A=1 dB/km, 3 dB Reserve, B = 800 MHz x km 0-5000 m, 8 dB Link Budget at 1300 nm, A=1 dB/km, 3 dB Reserve, B = 800 MHz x km
Multimode fiber (MM) 62.5/125 µm 0 - 4000 m, 11 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 500 MHz x km 0 - 4000 m, 11 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 500 MHz x km
Network size - cascadibility
Line - / star topology any
Power requirements
Operating Voltage 2 x 12 VDC ... 24 VDC
Power consumption 7 W
Power output in BTU (IT)/h 24
Software
Switching Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Interface Trust Mode, CoS Queue Management, Queue-Shaping / Max. Queue Bandwidth, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection, Jumbo Frames, VLAN (802.1Q), GARP VLAN Registration Protocol (GVRP), Voice VLAN, GARP Multicast Registration Protocol (GMRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Unknown Multicast Filtering, Multiple VLAN Registration Protocol (MVRP), Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP)
Redundancy HIPER-Ring (Ring Switch), Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2), Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards
Management Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet, IPv6 Management , OPC UA Server
Diagnostics Management Address Conflict Detection, MAC Notification, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Persistent Logging on ACA, Port Monitoring with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, Port Mirroring N:2, System Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management, Configuration Check Dialog, Switch Dump
Configuration Automatic Configuration Undo (roll-back), Configuration Fingerprint, Text-based Configuration File (XML), Backup config on a remote server when saving, Clear config but keep IP settings, BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, USB-C Management support, Command Line Interface (CLI), CLI Scripting, CLI script handling over ENVM at boot, Full-featured MIB Support, Context-sensitive Help, HTML5 based Management
Security MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, Integrated Authentication Server (IAS), RADIUS VLAN Assignment, Denial-of-Service Prevention, DoS Prevention Drop Counter, VLAN-based ACL, Ingress VLAN-based ACL, Basic ACL, Access to Management restricted by VLAN, Device Security Indication, Audit Trail, CLI Logging, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, Configurable Password Policy, Configurable Number of Login Attempts, SNMP Logging, Multiple Privilege Levels, Local User Management, Remote Authentication via RADIUS, User Account Locking, Password change on first login
Time synchronisation PTPv2 Transparent Clock two-step, PTPv2 Boundary Clock, BC with Up to 8 Sync / s , 802.1AS, Buffered Real Time Clock, SNTP Client, SNTP Server TSN 802.1Qbv Support
Industrial Profiles EtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), Modbus TCP, PROFINET Protocol
Miscellaneous Digital IO Management, Manual Cable Crossing, Port Power Down
Ambient conditions
MTBF (Telecordia SR-332 Issue 3) @ 25°C 2638177 h
Operating temperature 0-+60 °C
Storage/transport temperature -40-+70 °C
Relative humidity (non-condensing) 1- 95 %
Mechanical construction
Dimensions (WxHxD) 57 mm x 138 mm x 115 mm
Weight 420 g
Housing PC-ABS
Mounting DIN Rail
Protection class IP30

Các sản phẩm cùng Series

Model Description Download
BRS20-4TX/2FX-HL 4x 10/100BASE TX / RJ45; 2x 100Mbit/s fiber ; 1. Uplink: 1 x 100BASE-FX, MM-SC ; 2. Uplink: 1 x 100BASE-FX, MM-SC Datasheet
BRS20-4TX/2FX 4x 10/100BASE TX / RJ45; 2x 100Mbit/s fiber ; 1. Uplink: 1 x 100BASE-FX, MM-SC ; 2. Uplink: 1 x 100BASE-FX, MM-SC Datasheet
BRS20-4TX/2FX-EEC-HL 4x 10/100BASE TX / RJ45; 2x 100Mbit/s fiber ; 1. Uplink: 1 x 100BASE-FX, MM-SC ; 2. Uplink: 1 x 100BASE-FX, MM-SC Datasheet
BRS20-4TX/2FX-EEC 4x 10/100BASE TX / RJ45; 2x 100Mbit/s fiber ; 1. Uplink: 1 x 100BASE-FX, MM-SC ; 2. Uplink: 1 x 100BASE-FX, MM-SC Datasheet
