Giới thiệu

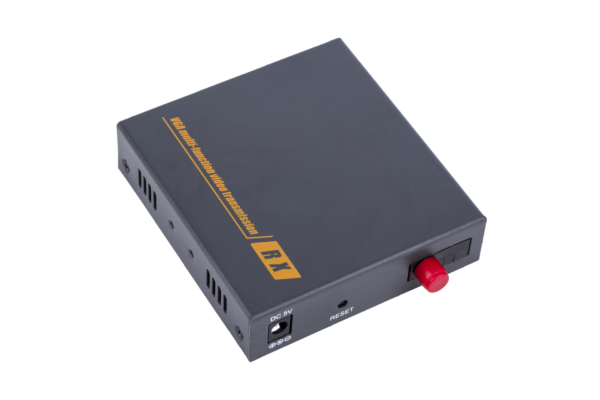

The VGA + KVM Fiber Extender could transmission high-definition video long distance through a single cable, while support for USB keyboard and mouse transmission, external independent audio and other functions, can adapt to a variety of complex applications. The device has a superior image processing and transmission capacity, so that the signal transmission more smooth and stable, it is a good solution with a reliable, high-performance, efficient VGA, keyboard and mouse signals to extend the way.
Tính năng
- Transmit VGA video and audio over long distances through the cable, up to 20KM;
- The highest resolution HD video signals up to 1080P @ 60Hz;
- Compliance with VGA standard protocol;
- Support for external one-way analog stereo audio signal transmission;
- Support USB keyboard and mouse transmission;
- It can automatically identify and configure a variety of display modes;
- Built-in automatic equalization system, the picture is smooth, clear and stable;
- Built-in ESD Protection Circuit, comprehensive protection system security;
- Easy to install, plug and play, no need to set;
Thông số kỹ thuật
| Parameter |
Description |
| Video |
Signal Type |
VGA |
| BW |
380MHz |
| Resolution |
1024X768 @ 60fps
1280X720@ 60fps
1280X800@ 60fps
1280X1024@ 60fps
1440×900 @ 60fps
1660×1200 @ 60fps
1680×1050 @ 60fps
1920×1080 @ 60fps
|
| Audio |
Port |
3.5mm Stereo audio socket |
| Type |
Stereo |
| K/M |
PIN |
USB |
| Ethernet port |
Cable Type |
Signals Fiber |
| Max transmission distance |
SC/FC 20KM |
| Other |
Power |
Adapter:DC 5V/2A |
| Power dissipation |
MAX 4W |
| Temperature |
Operating：-5℃ ~ +70℃ |
| Humidity |
Operating：5% ~ 90% |
| Size |
102*96*25mm |
| Warranty |
1 year |
