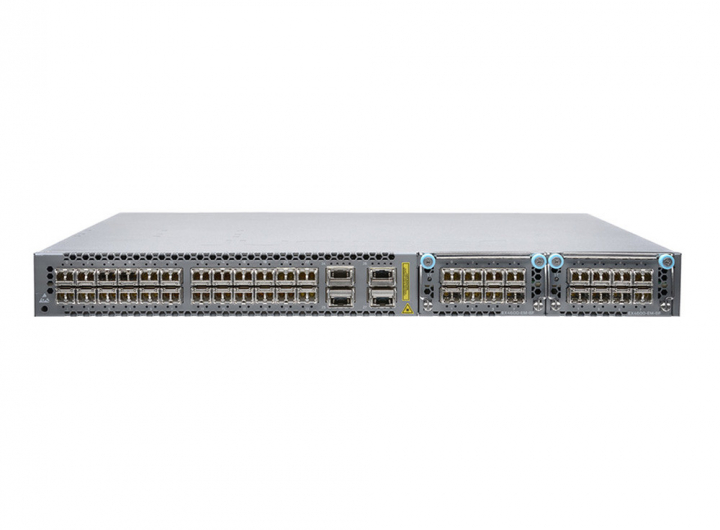

EX4600-40F-DC-AFO Switch công nghiệp 24 cổng SFP+/SFP, 4 cổng QSFP+

SKU:

EX4600-40F-DC-AFO

Viết đánh giá

EX4600-40F-DC-AFO hỗ trợ 24 cổng SFP+/SFP, 4 cổng QSFP+

Nhận báo giá

ADD TO CART
- 0

MÔ TẢ
HƯỚNG DẪN MUA HÀNG

Nội dung bài viết [hide]

1 Giới thiệu
2 Thông số kỹ thuật
3 Download

Giới thiệu

Bộ chuyển mạch Ethernet EX4600 cung cấp giải pháp 10GbE nhỏ gọn, có khả năng mở rộng cao, hiệu suất cao cho việc triển khai phân phối trong khuôn viên doanh nghiệp cũng như các môi trường hàng đầu của trung tâm dữ liệu mật độ thấp. EX4600 cho đám mây và hỗ trợ ZTP, vì vậy nó có thể được tích hợp, cung cấp và quản lý bằng dây, để mang lại trải nghiệm tốt hơn cho các thiết bị được kết nối.

Thông số kỹ thuật

Hardware Specifications
Interface Options	• 1GbE SFP: 24(40) (with 10GbE expansion modules) • 10GbE SFP+: 24(40/72) (with 10GbE expansion modules/ with fixed 40GbE ports using breakout cables) • 40GbE QSFP+: 4(12) (with expansion modules) - Each fixed QSFP+ port can be configured as a 4x10GbE interface - Each QSFP+ port can be configured as a 40 Gbps port - USB port - Console port - 2 management ports: 1 RJ-45 and 1 SFP - Supported transceiver and direct attach cable - SFP+ 10GbE optical modules - SFP+ DAC cables: 1/3/5 m direct-attached copper and 1/3/5/7/10 m active direct-attached copper - SFP GbE optical and copper module - QSFP+ to SFP+ 10GbE direct attach bre
Switching capacity	1.44 Tbps/1.07 Bpps
Weight	21.7 lb (9.84 kg) with PSUs and fans installed
Dimensions (HxWxD)	1.72 x17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm)
Switching mode	Cut-through and store-and-forward
Predicted mean time between failures (MTBF)	150,000 hours
Predicted FIT rate	4,987
Rack Installation Kit	Versatile four post mounting options for 19-in server rack or datacom rack
Airflow	Front-to-back cooling
Power Supply	• Dual redundant (1+1) and hot-pluggable power supplies • -36 to -72 V DC power • Redundant (N+1) and hot-pluggable fan modules for frontto-back and back-to-front airflow
Performance Scale	• MAC addresses per system: 288,000 • VLAN IDs: 4,091 • Number of LAGs: 128 • Number of ports per LAG: 32 • FCoE scale: - Number of FCoE VLANs/FC virtual fabrics • Firewall filters: 4,000 • IPv4 unicast routes: 128,000 prefixes; 208,000 host routes; 64** ECMP paths • IPv4 multicast routes: 104,000 • IPv6 multicast routes: 52,000 • IPv6 unicast routes: 64,000 prefixes • Address Resolution Protocol (ARP) entries: 48,000 • Jumbo frame: 9,216 bytes
Software Specifications
Access Control Lists (ACLs)	• Port-based ACL (PACL): Ingress and egress • VLAN-based ACL (VACL): Ingress and egress • Router-based ACL (RACL): Ingress and egress • ACL entries (ACE) in hardware per system: - Ingress ACL: 1,536 - Egress ACL: 1,024 • ACL counter for denied packets • ACL counter for permitted packets • Ability to add/remove/change ACL entries in middle of list (ACL editing) • L2-L4 ACL • IPv6 ACL • Firewall filter on loopback interface • Firewall filter on management interface
Spanning Tree Protocol (STP)	• Multiple Spanning Tree Protocol (MSTP) instances: 64 • VLAN Spanning Tree Protocol (VSTP) instances: 253
Traffic Mirroring	• Mirroring destination ports per switch: 4 • Maximum number of mirroring sessions: 4 • Mirroring destination VLANs per switch: 4
Layer 2 Features	• STP—IEEE 802.1D (802.1D-2004) • Rapid Spanning Tree Protocol (RSTP) (IEEE 802.1w); MSTP (IEEE 802.1s) • Bridge protocol data unit (BPDU) protect • Loop protect • Root protect • RSTP and VSTP running concurrently • VLAN—IEEE 802.1Q VLAN trunking • Routed VLAN interface (RVI) • Port-based VLAN • MAC address filtering • GRE tunneling • QinQ** • VLAN translation • Static MAC address assignment for interface • Per VLAN MAC learning (limit) • MAC learning disable • Link Aggregation and Link Aggregation Control Protocol (LACP) (IEEE 802.3ad) • IEEE 802.1AB Link Layer Discovery Protocol (LLDP) • MAC notification • MAC address aging configuration • MAC address filtering • Persistent MAC (sticky MAC)
Link Aggregation	• Multichassis link aggregation (MC-LAG) - Layer 2, Layer 3, VRRP, STP • Redundant trunk group (RTG) • LAG load sharing algorithm—bridged or routed (unicast or multicast) traffic: - IP: SIP, Dynamic Internet Protocol (DIP), TCP/UDP source port, TCP/UDP destination port - Layer 2 and non-IP: MAC SA, MAC DA, Ethertype, VLAN ID, source port - FCoE packet: Source ID (SID), destination ID (DID), originator exchange ID (OXID), source port
Layer 3 Features (IPv4)	• Static routing • Routing policy • Routing protocols (RIP, OSPF, IS-IS, BGP, MBGP) • Virtual Router Redundancy Protocol (VRRP) • Bidirectional Forwarding Detection (BFD) protocol • Virtual router • Dynamic Host Configuration Protocol (DHCP) relay • Proxy Address Resolution Protocol (ARP) • Multicast Features • Internet Group Management Protocol (IGMP): v1, v2, v3 • IGMP snooping: v1, v2, v3 • IGMP filter • PIM-SM • Multicast Source Discovery Protocol (MSDP) • Security and Filters • Secure interface login and password • RADIUS • TACACS+ • Ingress and egress filters: Allow and deny, port filters, VLAN filters, and routed filters, including management port filters • Filter actions: Logging, system logging, reject, mirror to an interface, counters, assign forwarding class, permit, drop, police, mark • SSH v1, v2 • Static ARP support • Storm control, port error disable, and autorecovery • Control plane denial-of-service (DoS) protection • Dynamic ARP inspection (DAI) • Sticky MAC address • DHCP snooping • Filter based forwarding • IP directed broadcast traffic forwarding • IPv4 over GRE (encap and decap)
Layer 3 Features: IPv6	• Static routing • Routing protocols (RIPng, OSPF v3, IS-IS v6, BGP v6) • Virtual Router Redundancy Protocol (VRRP v3) • IPv6 CoS (BA, MF classification and rewrite, scheduling based on TC) • IPv6 over MPLS LSPs (6PE) • IPv6 ping • IPv6 traceroute • Neighbor discovery protocol • Path MTU discovery • SNMP, NTP, DNS, RADIUS, TACACS+, AAA • Virtual router support for IPv6 unicast
Quality of Service (QoS)	• L2 and L3 QoS: Classification, rewrite, queuing • Rate limiting: - Ingress policing: 1 rate 2 color, 2 rate 3 color - Egress policing: Policer, policer mark down action - Egress shaping: Per queue, per port • 12 hardware queues per port (8 unicast and 4 multicast) • Strict priority queuing (LLQ), smoothed deficit weighted round-robin (SDWRR), weighted random early detection (WRED), weighted tail drop • 802.1p remarking • L2 classification criteria: Interface, MAC address, Ethertype, 802.1p, VLAN • Congestion avoidance capabilities: WRED • Trust IEEE 802.1p (ingress) • Remarking of bridged packets • Priority-based flow control (PFC)—IEEE 802.1Qbb • Enhanced Transmission Selection (ETS)—IEEE 802.1Qaz • Data Center Bridging Exchange Protocol (DCBX), DCBx FCoE, and iSCSI type, length, and value (TLVs) • Fibre Channel over Ethernet (FCoE) • FCoE transit switch (FIP snooping ACL installation) • Virtual fiber channel gateway • FCoE session path learning • FCoE session health monitoring • Graceful restart for FIP snooping • FC-BB-6 VN2VN snooping
Virtual Chassis	• 40GbE and 10GbE as Virtual Chassis port • Virtual Chassis Routing Engine (RE) election • Virtual Chassis pre-provisioning (plug and play) • Auto-LAG formation of Virtual Chassis ports • Mixed Virtual Chassis support between EX4300-EX4600 (in data center only) • FCoE transit across Virtual Chassis members • QoS on Virtual Chassis ports • Local designated forwarding • Graceful RE switchover (GRES) • Nonstop routing (NSR) • Nonstop bridging (NSB) • Monitor distributed aggregate interface • Control plane protection for virtual RE
High Availability	• ISSU (in standalone and MC-LAG configuration) • Bidirectional Forwarding Detection (BFD) • Uplink failure detection (UFD) • Graceful Routing Engine switchover (GRES) in Virtual Chassis configuration • Non-stop bridging (NSB) in Virtual Chassis configuration • Non-stop routing (NSR) in Virtual Chassis configuration • Non-stop software upgrade (NSSU) in Virtual Chassis configuration
MPLS	• VRF-Lite • 2-label stack • Static label-switched paths (LSPs) • RSVP-based signaling of LSPs • LDP-based signaling of LSPs • LDP tunneling (LDP over RSVP) • MPLS class of service (CoS) • MPLS access control list (ACL)/policers • MPLS LSR support • Push, swap, pop, IP lookup • IPv6 tunneling (6PE) (via IPv4 MPLS backbone) • MPLS Operation, Administration, and Maintenance (OAM)— • LSP ping • IPv4 L3VPN (RFC 2547, 4364) • Ethernet-over-MPLS (L2 circuit) • Layer 3 VPN (L3VPN) • Layer 2 VPN (L2VPN) • Link protection • MPLS fast reroute (FRR)- 1:1 Protection • Node-link protection
Traffic Mirroring	• Port-based • LAG port • VLAN-based • Filter-based • Mirror to local • Local/L2 remote analyzer (SPAN, RSPAN for IPv4 and IPv6 frames) • Mirror to remote destinations (L2 over VLAN) • Insight Technology (microburst monitoring and statistics reporting)

Download

Datasheet
